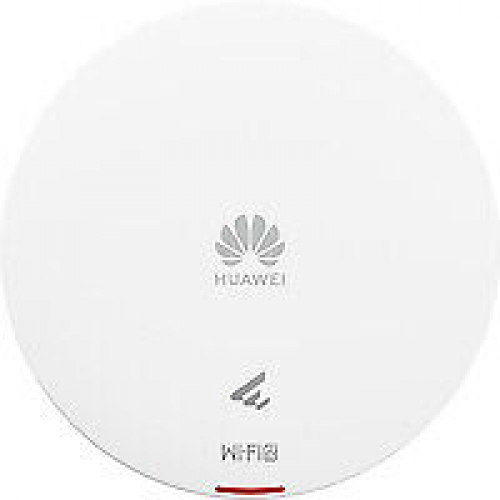

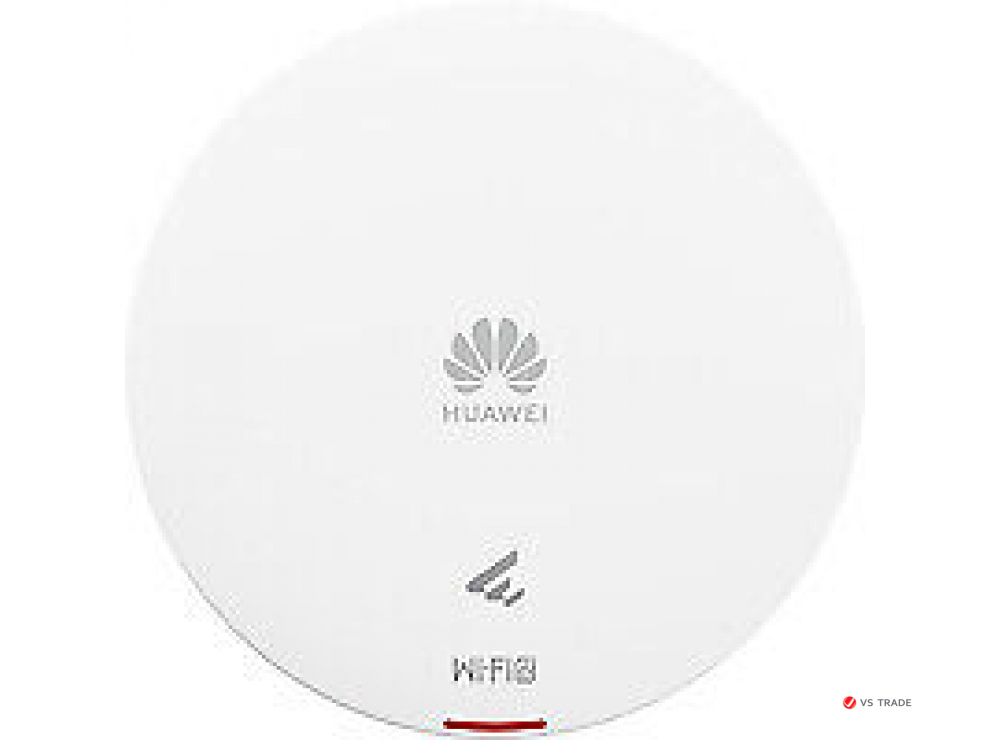

Точка доступа HUAWEI AP361 Wi-Fi 6 indoor (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE RJ45, internal smart antennas)
Артикул: AP361 Huawei AP 50086871
Точка доступа HUAWEI AP361 Wi-Fi 6 indoor (2.4/5 GHz, 2x2/2x2 MIMO, 1*GE PoE RJ45, internal smart antennas)
Остаток на складе: 191
08:19:31 - 11.10.2024
Характеристики
Basic Information | |
Part Number |
50086871 |
Model |
AP361 |
Description |
AP361(11ax indoor,2+2 dual bands,smart antenna) |
First supported version |
V200R023C00 |
Technical Specifications | |
Installation Type |
Wall,Ceiling,T-Rail |
Diameter [mm] |
180 mm |
Height [mm] |
35 mm |
Weight with packaging [kg(lb)] |
0.75 kg (1.65 lb) |
Weight without packaging [kg(lb)] |
0.45 kg (0.99 lb) |
Maximum number of physical ports on the entire device |
GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
Maximum power consumption [W] |
8.8 |
Maximum heat dissipation [BTU/hour] |
28.5 |
Power supply mode |
PoE |
Input voltage range [V] |
PoE: 802.3af |
Rated input voltage [V] |
NA |
802.3at power supply description |
No function is limited. |
DC power supply description |
DC power supply is not supported. |
802.3bt power supply description |
No function is limited. |
802.3af power supply description |
No function is limited. |
Wi-Fi standard |
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
Antenna gain [dBi] |
2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) |
Maximum transmit power [dBm] |
2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
Radio number |
2 |
MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
Radio interface |
Built-in smart antennas |
Operating frequency band |
2.4GHz,5GHz |
Storage |
NAND Flash 256 MB |
Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
MTBF [year] |
440.3 |
MTTR [hour] |
2 |
Console port |
None |
Atmospheric pressure [kPa] |
53kPa - 106kPa ETSI 300 019-2-3 |
Service port surge protection [kV] |
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B |
Ground |
floating ground |
BLE |
Not supported |
3G/LTE filte (ACC) |
Not supported |
