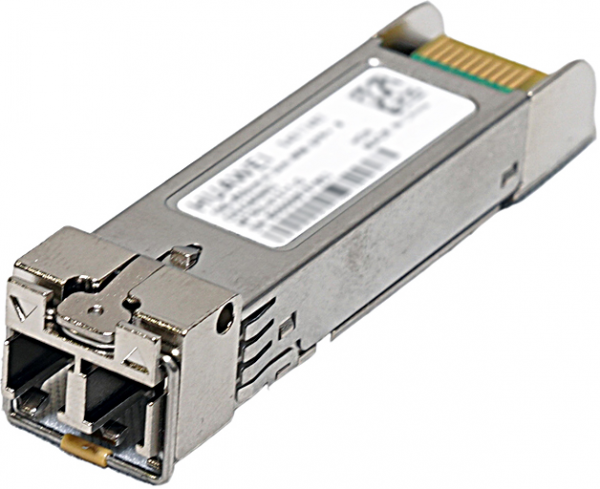

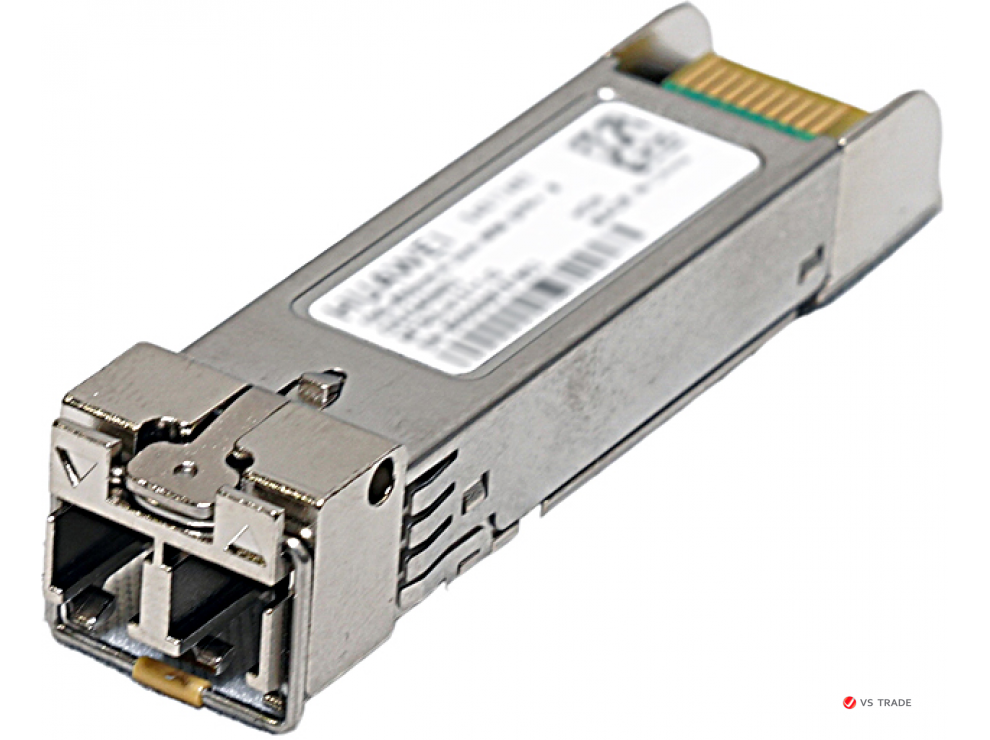

Трансивер оптический HUAWEI SFP-10G-iLR 10GBASE-iLR, SFP+ Transceiver, Single-mode (1310nm, 1.4km, LC), -40 to +85C

18:42:35 - 25.04.2025

Понравилось? Расскажи друзьям!

Артикул: SFP-10G-iLR Huawei 02311BJJ

Остаток на складе: 18

Регистрация

18:42:35 - 25.04.2025

Характеристики

Basic Information
Part Number	02311BJJ
Model	SFP-10G-iLR
Description	Optical Transceiver,SFP+,9.8G,Single-mode Module(1310nm,1.4km,LC)
Level-1 category	10GE SFP+ Optical Modules
Module name	SFP-10G-iLR
Technical Specifications
Connector type	LC/DLC
Optical fiber type	SMF
Form factor	SFP+
Transmission rate [bit/s]	10G
Target transmission distance [km]	Single-mode fiber (G.652) (with diameter of 9 μm): 1.4 km
Application standard/Type	10GBASE-iLR
Working case temperature [°C(°F)]	-40°C to +85°C (-40°F to +185°F)
Type of the end face of the fiber ceramic ferrule	PC or UPC
DDM options	Supported
Center wavelength [nm]	1310
Overload power (AVG) [dbm]	0.5
Minimum Tx optical power (AVG) [dbm]	-8.2
Maximum Tx optical power (AVG) [dbm]	0.5
Minimum extinction ratio [db]	3.5
Rx sensitivity (OMA) [dbm]	-14.4

Показать полностью Свернуть описание

Вес товара: 34 г

Трансивер оптический HUAWEI SFP-10G-iLR 10GBASE-iLR, SFP+ Transceiver, Single-mode (1310nm, 1.4km, LC), -40 to +85C

Бренд
Код производителя: 02311BJJ
Штрих код: 886598036320
Код товара: 319402
Гарантия: 36 месяцев
Полное описание: Трансивер оптический HUAWEI SFP-10G-iLR 10GBASE-iLR, SFP+ Transceiver, Single-mode (1310nm, 1.4km, LC), -40 to +85C
