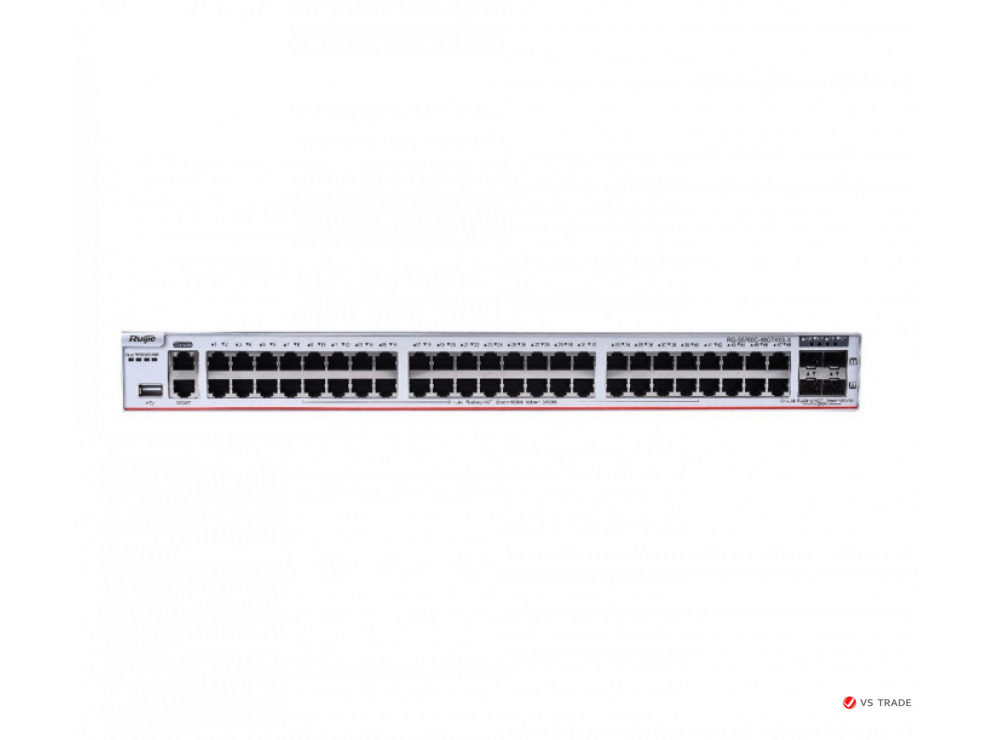

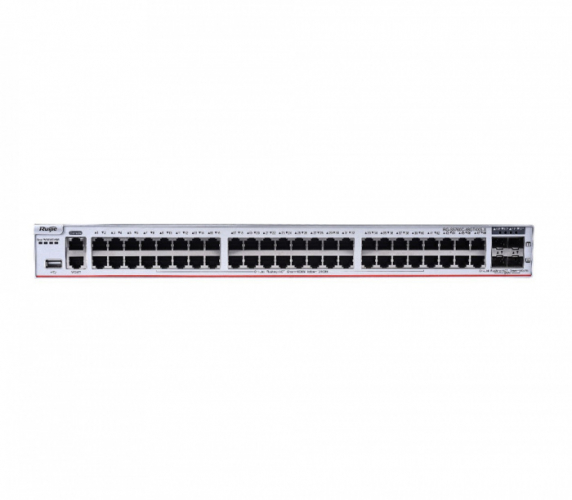

Коммутатор Ruijie RG-S5760C-48GT4XS-X L3 Managed (48 x 10/100/1000BASE-T, 4 x 1G/10G SFP+, 2 EMPTY power module slots)

Item

Description

Model

RG-S5760C-24GT8XS-X

RG-S5760C- 24SFP/8GT8XS-X

RG-S5760C-48GT4XS-X

Basic Features

Fixed Ports

24x 10/100/1000BASE-T, 8 x

1G/10G SFP+ ports, 2 power

module slots

24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports),

8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots

48x 10/100/1000BASE-T, 4 x

1G/10G SFP+ ports, 2 power

module slots

Management Port

1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard

Expansion Slot

Single expansion slot is reserved to for service modules.

Switching

Capacity

880 Gbps/7.92 Tbps

Packet Forwarding Rate

426 Mpps/600 Mpps

426 Mpps/600 Mpps

402 Mpps/600 Mpps

MAC Address

64K

ARP Table

24K

Routing Table

Size (IPv4/IPv6)

24K (IPv4/IPv6)

Product Features

VLAN

The following are supported:

4K 802.1Q VLAN

Port based VLAN Private VLAN Voice VLAN GVRP

QinQ

Basic QinQ Flexible QinQ

Link Aggregation

LACP(802.3ad)

Spanning Tree

The following are supported:

STP, RSTP, and MSTP

DHCP

The following are supported:

DHCP Server DHCP Client DHCP Snooping DHCP Relay

IPv6 DHCP Server IPv6 DHCP Snooping IPv6 DHCP Client IPv6 DHCP Relay

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

128

IPv6 Basic Protocol

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless auto-configuration, and Path MTU Discovery

IP Routing

The following are supported:

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6 BGP4, and BGP4+

Equivalent routing

Policy Based Routing

Packet-based load balancing, and flow-based load balancing MCE

Multicast

The following are supported: IGMP v1, v2, v3, and IGMP proxy IGMP v1, v2 and v3 Snooping

IGMP filtering, and IGMP fast-leave PIM-DM, PIM-SM, and PIM-SSM

MLD Snooping, and MLD PIM for IPv6

MPLS

MPLS L3VPN

ACL& QoS

ACL

The following flexible and diversified hardware ACLs are supported: Standard IP ACLs (IP-based hardware ACL)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)

MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time-based ACLs

Expert-level ACLs (hardware ACLs based on flexible combinations of Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)

ACL80 IPv6 ACLs

QoS

The following are supported:

Port traffic identification Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Eight priority queues per port

SP, DRR, SP+DRR, RED/WRED queue scheduling mechanisms

Security

Features

The following are supported:

3-tuple binding (IP address, MAC address, and port)

3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses

Port- and MAC-based 802.1x authentication MAB authentication

Portal authentication and Portal 2.0 authentication ARP-check

DAI

ARP packet rate limiting

Gateway ARP spoofing prevention Broadcast storm suppression

Hierarchical management of administrators and password protection RADIUS and TACACS+

Security

Features

AAA for device login management SSH

BPDU Guard

IP Source Guard CPP, and NFPP

Port protection

Management Features

SNMP, CLI (Telnet/Console), RMON, SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, and Traceroute v6

This switch supports sFlow, and samples its traffic information by using the random sampling technology of data flows.

High Reliability

The following are supported:

VSU (virtualization technology, which virtualizes multiple devices into one), GR for RIP/OSPF/BGP and other routing protocols, BFD detection, ERPS (G.8032), REUP, RLDP, power supply 1+1 backup, and the hot- swappable function supported on the power supply

Zero

Configuration

CPE WAN Management Protocol (CWMP(TR069))

PoE

Unsupported

Physical Features

Dimensions (W

× D × H)

442 mm × 340 mm × 44 mm

Rack Height

1RU

MTBF (hours)

>200K

Power Supply

AC input:

Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz

HVDC input:

Rated voltage range: 240 V

Maximum voltage range: 192 V to 288 V

Power Consumption (full load)

60 W

77 W

70 W

Fan

2 built-in fans

Fan speed regulating and alarm function

Temperature

Alarm

Supported

Temperature

Operating temperature: 0oC to 45oC(without an expansion card), 0oC to 40oC (with an expansion card) Storage temperature: -40oC to 70oC

Relative

Humidity

Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95%

Operating

Altitude

500m to 5,000m

Lightening Protection on Communication Port

6kV (Common Mode)

Lightning Protection on Power Port

Common Mode 6KV/Differential Mode 6KV
