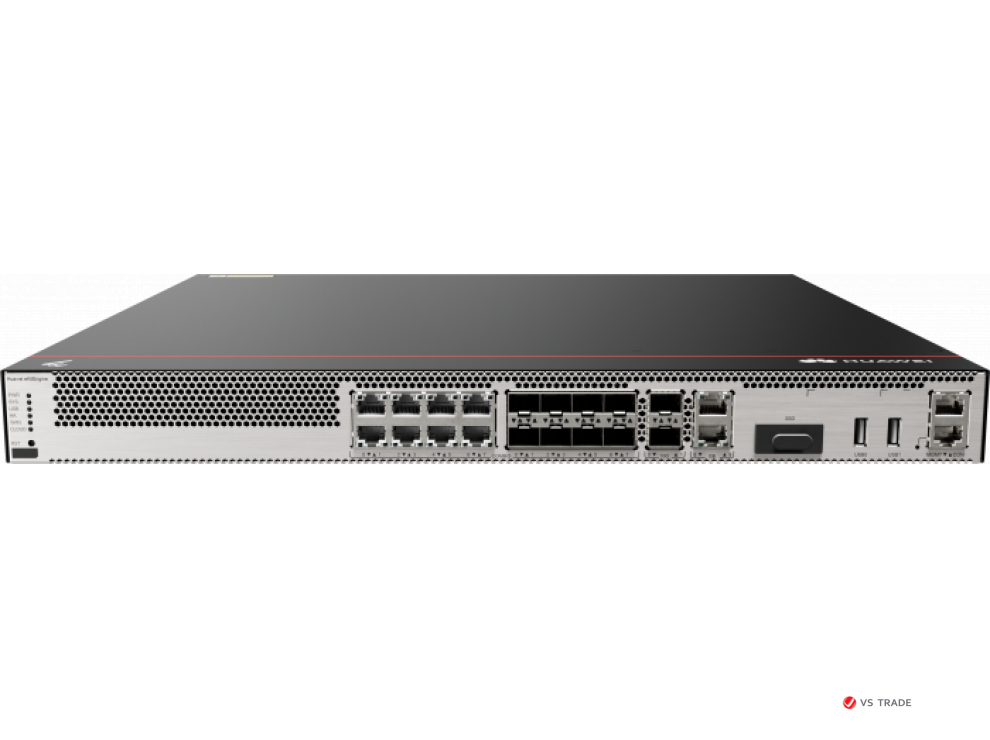

Межсетевой экран HUAWEI USG6000E-S13 (2*GE RJ45 + 8*GE COMBO (RJ45/SFP) + 2*10GE SFP+,1 AC power,Incl SSL VPN 100 Users)
Артикул: USG6000E-S13 Huawei 02355YXM
Межсетевой экран HUAWEI USG6000E-S13 (2*GE RJ45 + 8*GE COMBO (RJ45/SFP) + 2*10GE SFP+,1 AC power,Incl SSL VPN 100 Users)
Остаток на складе: 2
05:10:09 - 11.10.2024
Характеристики
Basic Information | |
Part Number |
02355YXM |
Model |
USG6000E-S13-AC |
Description |
USG6000E-S13-AC Host(2*GE RJ45 + 8*GE COMBO + 2*10GE SFP+,1 AC power,Include SSL VPN 100 Users) |
First supported version |
V600R007C20SPC605 |
Technical Specifications | |
Installation Type |
Rack,Work bench |
Cabinet installation standard |
Cabinet with a depth of 600 mm or above |
Wide [mm] |
442 mm |
Depth [mm] |
420 mm |
Height [mm] |
43.6 mm |
Chassis height [U] |
1 |
Weight without packaging [kg(lb)] |
5.95 (13.12) |
Weight with packaging [kg(lb)] |
7.93 (17.48) |
Maximum power consumption [W] |
45.3 |
Maximum heat dissipation [BTU/hour] |
154.4 |
Heat dissipation mode |
Absorbing cold air into the device |
Power supply mode |
Built-in AC |
Rated input voltage [V] |
100 V to 240 V, 50 Hz/60 Hz |
Input voltage range [V] |
90 V to 290 V, 47 Hz to 63 Hz |
CPU |
1 CPU, 4 cores/CPU, up to 1.4 GHz |
Memory |
DDR4 4 GB |
NOR Flash |
64MB |
NAND Flash |
2 GB |
Hard disk |
Optional. M.2 SSD (64GB/240GB/960GB), hot-swappable. |
Redundant power supply |
Dual power modules can be purchased to form 1+1 redundancy backup. |
Number of power modules |
1 |
Number of fan modules |
1 |
Types of fans |
Pluggable |
Airflow direction |
Air flows in from the front panel and exhausts from the rear panel. |
Long-term operating temperature [°C(°F)] |
0°C to 45°C |
Storage temperature [°C(°F)] |
-40°C to 70°C |
Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
Storage relative humidity [RH] |
5% RH to 95% RH, non-condensing |
Long-term operating altitude [m(ft.)] |
0 m to 5000 m |
Storage altitude [m(ft.)] |
0 m to 5000 m |
MTBF [year] |
68.98 |
MTTR [hour] |
2 |
Console port |
RJ45 |
Eth Management port |
RJ45 |
Показать полностью
Свернуть описание
Вес товара: 8000 г
