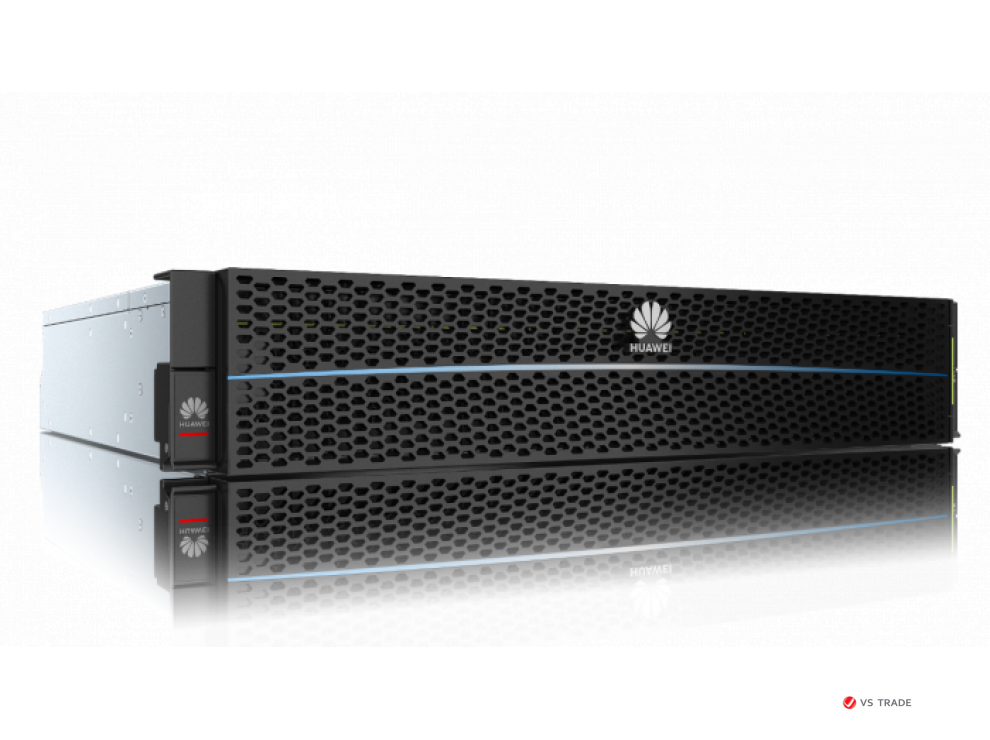

СХД HUAWEI OceanStor 5120-S-S-64G-AC (2U, 25*2.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)
Понравилось? Расскажи друзьям!
Артикул: 5120-S-S-64G-AC HUAWEI 02356FRT
СХД HUAWEI OceanStor 5120-S-S-64G-AC (2U, 25*2.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)
Остаток на складе: 5
18:31:21 - 12.07.2025
Характеристики
| System Cache (Dual-Controller) | 32GB/64GB |
| Maximum Cache (Dual-Controller; Expands with Controllers) | 32GB-256GB |
| Supported Storage Protocols | FC, iSCSI, NFS, CIFS |
| Front-End Port Types | 8/16/32 Gbps FC, 1/10/25 Gbps Ethernet |
| Back-End Port Types | SAS 3.0 |
| Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure | 4 |
| Maximum Number of Front-End Ports per Controller Enclosure | 28 |
| Disk Types | SSD, SAS, NL-SAS |
| Supported SCMs | Not supported |
| Supported RAID Levels | RAID 10, RAID 5, RAID 6, and RAID-TP (tolerating simultaneous failure of 3 disks) |
| Value-Added Features | SmartAcceleration, SmartThin, SmartMigration, HyperSnap, SmartQoS, HyperLock, SmartMulti-Tenant, SmartQuota, SmartErase, HyperVault, HyperMetro, HyperReplication, HyperClone, SmartVirtualization, HyperCDP, HyperEncryption, SmartCompression, SmartMobility, SmartMigration for NAS |
| Storage Management Software | UltraPath, DeviceManager, BCManager, DME IQ |
| Power Supply | 100 V to 240 V AC±10%, 192 V to 288 V DC –38.4 V to –75 V DC (only supported by disk enclosures) |
| Controller Enclosure Dimensions (H x W x D) | 2.5-inch controller enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch controller enclosure: 86.1 mm × 447 mm × 488 mm |
| Disk Enclosure Dimensions (H x W x D) | 2.5-inch SAS disk enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch SAS disk enclosure: 175 mm × 447 mm × 488 mm |
| Controller Enclosure Weight (Excl. Disk Units) | 2.5-inch controller enclosure: 16.4 kg 3.5-inch controller enclosure: 16.3 kg |
| Disk Enclosure Weight (Excl. Disk Units) | 2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg |
| Operating Temperature | –60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure) 1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m |
| Operating Humidity | 10%～90％R.H. |
Показать полностью
Свернуть описание
Вес товара: 29000 г
- Бренд
- Код производителя
- 02356FRT
- Штрих код
- 02356FRT
- Код товара
- 320176
- Гарантия
- 36 месяцев
- Полное описание
- СХД HUAWEI OceanStor 5120-S-S-64G-AC (2U, 25*2.5 SAS, Dual Controllers, 64GB Cache, 8*1GE, 4*10GE SFP+, LIC-5120V6-BP)
